Input of expressions by display names / aliases

Steps

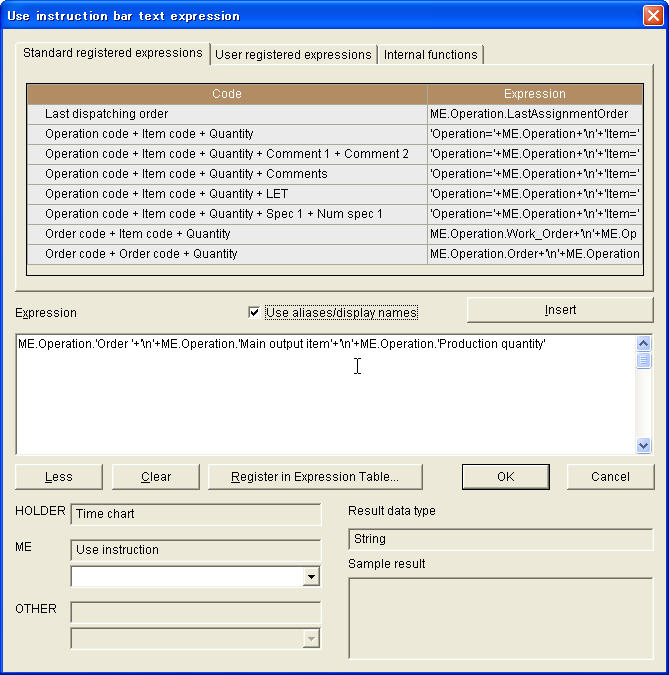

If you check "Use aliases/display names" in the expression editing dialog, the properties of the expression will be displayed by aliases / display names instead of codes.


The names displayed in the expression will be searched and displayed in the order of:

 Aliases
 Display names
 Codes

.


You may also input the expression by using aliases / display names.
For example, the expression referring to the operation in the use instruction bar text expression would be:

ME.operation

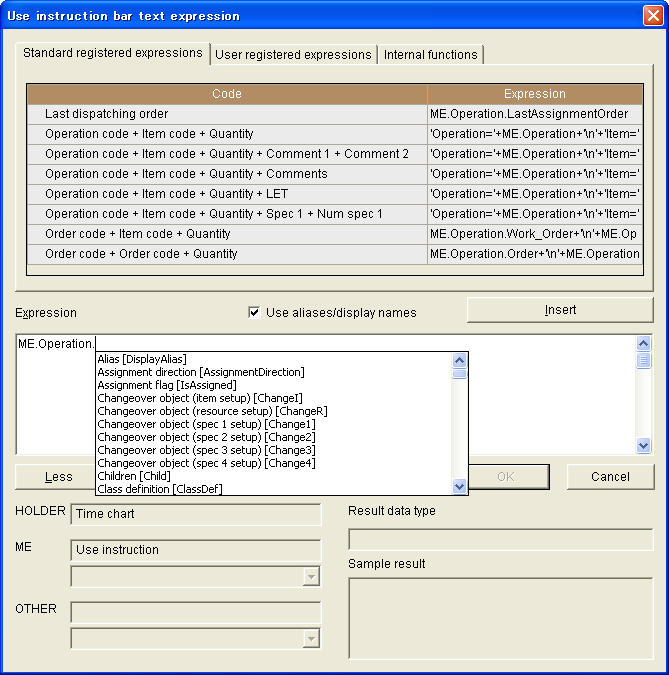

would be used. At the same time, the dropdown list will display aliases / display names on the left, while codes are displayed in parentheses.


Any property name including a special character string will be enclosed in single quotation marks.


The special characters are as follows:

+ - / * ^ | & % ! < > = ( ) [ ] # @ \


As shown above, any property name using a special character string will be enclosed in single quotation marks. For example, in the case of an operation's (total calculated) EST property,

ME.'TotalCalculatedEST'

.
If you try to remove "ME" and input any property enclosed in single quotation marks, the resulting

'TotalCalculatedEST'

will make it difficult to tell if it is a string or referring to a property. Therefore, please make sure to put "ME" in the expression.



HelpNo.:741150
