Zoom

Steps

You can zoom into and zoom out of the charts and tables.
There are several ways to zoom.

Use the slide bar.

Select the combo box and set the zoom rate.

Set the value in the display settings.

Use the mouse wheel.


There are two zoom methods, as follows. These methods are switched in “Zoom Method” in the Workspace. (The “Zoom Method” property was added in Ver. 15.0.)

Enable vertical and horizontal zoomWhen zooming with the mouse wheel in a chart, you can select simple zoom, vertical zoom, or horizontal zoom with the cursor position.
The zoom value is set with the “Default row height” (ASGTableViewProps_DefaultRowHeight) property.
Simple zoomRegardless of where the mouse cursor is on a table or chart, zooming in and out is done in the same way. This is the zoom method for versions older than Ver. 15.0.
The zoom value is set with the “Zoom” (ASGGridViewProps_Zoom) property.



Enable vertical and horizontal zoom

Use the slide bar.

By moving the slide bar on the Tool menu left and right you can zoom into and out of the charts and tables.
See here for more details about the tool bar.



Set the combo box and set the zoom rate.

Specifies the zoom ratio. Alternatively, the value can be input directly into the combo box.
The value in the chart is the same as that set for row height (unit = pixel) (default row height value for table view) (ASGTableViewProps_DefaultRowHeight) property).
In cases other than a chart, this is the same as simple zoom.


Set the value in the display settings

Set the “Default row height for table view” (ASGTableViewProps_DefaultRowHeight) property.
Change the column width of the time axis with the mouse on the chart, or change it in "Display Period" in the right-click popup menu.


Use the mouse wheel.

Hold down the Ctrl key in the left-side table while moving the mouse wheel to change the row height.
Hold down the CTRL key while moving the mouse wheel on the header part of the right-side chart to change the column width.
Hold down the CTRL key while moving the mouse wheel on the body part on the right-side chart to change the row height and column width.



Simple zoom

Use the slide bar.

By moving the slide bar on the Tool menu left and right you can zoom into and out of the charts and tables.
See here for more details about the tool bar.



Set the combo box and set the zoom rate.

Specifies the zoom ratio. Alternatively, the value can be input directly into the combo box. Input value ranges from 10% to 1000%.
For graphical BOM, the input value can be less than 40% from Ver.7.2.1. But it should not be less than 40% before Ver.7.2.1


Set the value in the display settings

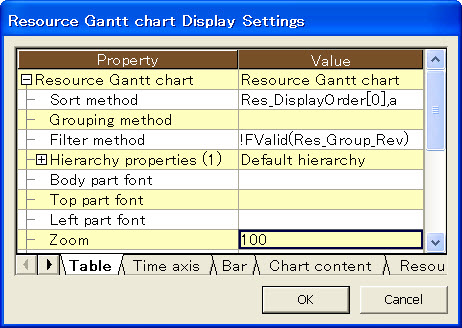

You can zoom by setting the value of the Zoom property in the Display settings.



Use the mouse wheel.

You can zoom by keeping the CTRL key pressed down while moving the mouse wheel.



Notes on switching the zoom method

When changing the zoom method, the size of the label may change.
After changing the zoom method, correct as appropriate the size of the label on the chart or label table.
