Login Dialog

Dialogs Overview

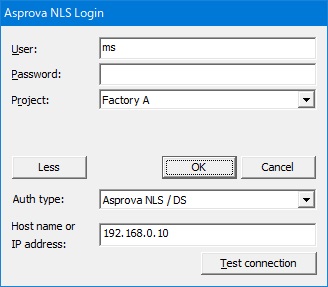

Asprova NLS Login dialog


This is displayed when you acquire a license from Asprova NLS right after starting Asprova.
Reference: Switching License Obtaining Method

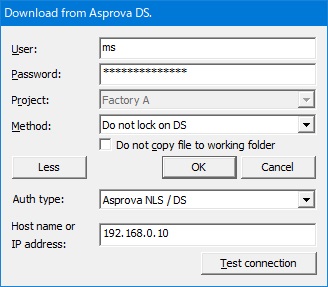

Asprova DS Login dialog



User

Please enter the registered user name in the Asprova DS user table.

Password

Please enter the password registered in the user table of Asprova DS.

Project

In the case of a successful link with Asprova DS, the project name registered to Asprova DS will be listed in the combo box, so select the name of the project to download.

Method

Select from the following.

 Upload authority of the project fileUpload authority of the difference dataNotification of the change by other personExclusive control by objects
Lock on DSYesYesYesYes
Do not lock on DSNoYesYesYes
Use offlineNoNoNoNo

Lock on DS

Only the scheduler module can be selected. If locking is successful, you are given the right to upload and update the project file.
The project file can be locked only by one user at one time. As a result, the project file is exclusively controlled.
Moreover, if “Exclusive control for objects” in the project settings is set to “Exclusive”, the exclusive control function for each object is enabled.

Do not lock on DS

All modules can be selected. You cannot upload the project file, but you are given the right to upload the changes only as differential data.
Moreover, if “Exclusive control for objects” in the project settings is set to “Exclusive”, the exclusive control function for each object is enabled.

Use offline

All modules can be selected. You can upload neither project files nor differential data. Nor will you be notified when other users have uploaded data.
Moreover, even if “Exclusive control for objects” in the project settings is set to “Exclusive”, the exclusive control function for each object is not enabled. This is for simulating using the downloaded project files.

Auth type

Asprova NLS/DSUser authentication is done by Asprova NLS/DS. The user name and password entered in the dialog box will be used.
Active DirectoryUser authentication is done by Active Directory. The user name and password entered in the dialog box will be used.
Active Directory (Single Sign On)User authentication is done by Active Directory. The user name and password used when logging in to Windows will be used.

To use Active Directory, Active Directory (Single Sign On) as the authentication method, it is necessary to set this in Asprova NLS/DS.
For details, refer to the Asprova NLS/DS manual.

Host name or IP address

Specify the IP address or host name of Asprova NLS/DS.

Setting example
IPv4192.168.0.100
IPv60:0:0:0:0:0:192.168.0.100
2001:0db8:1234:5678:90ab:cdef:0000:0000
Host namenls1.asprova.com


HelpNo.:737855
