Replace Dialog

Dialogs Overview

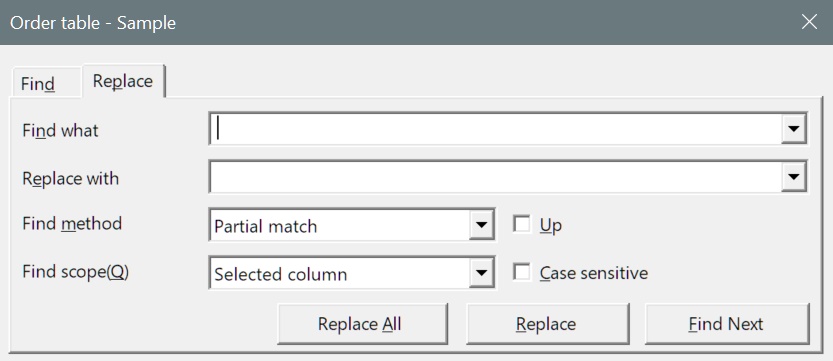

You can use the Replace dialog to replace a property, character string and so on in the currently displayed window.


As a dialog caption, the name of the window for which you execute the Replace command will be displayed.

Find what

Enter a property name or characters you want to search.

Replace with

Enter characters with which you want to replace the characters you search.

Find unit

 "Complete match"Only those which completely match the characters you specified in the "Find what" field will be searched.
On versions earlier than Ver.12.0.2, this is shown as "Property value".
 "Partial match"Those that include the characters you specified in the "Find what" field will be searched.
On versions earlier than Ver.12.0.2, this is shown as "All".

Find scope

 "All"All the displayed cells will be searched.
On versions earlier than Ver.12.0.2, this is shown as "Active window".
 "Selected column"The selected column will be searched.
On versions earlier than Ver.12.0.2, this is shown as "Column".
 "Selection only"The selected cells will be searched. Ver.13 restricted features.

Replace All

Replaces all of the characters you specified in the "Find what" field with the characters you specified in the "Replace with" field.

Replace

Replaces characters only for the selected cell.

Find Next

If you click this button, the cursor will jump to the next found cell.


When performing the replace on a table, the cell to be replaced becomes highlighted.

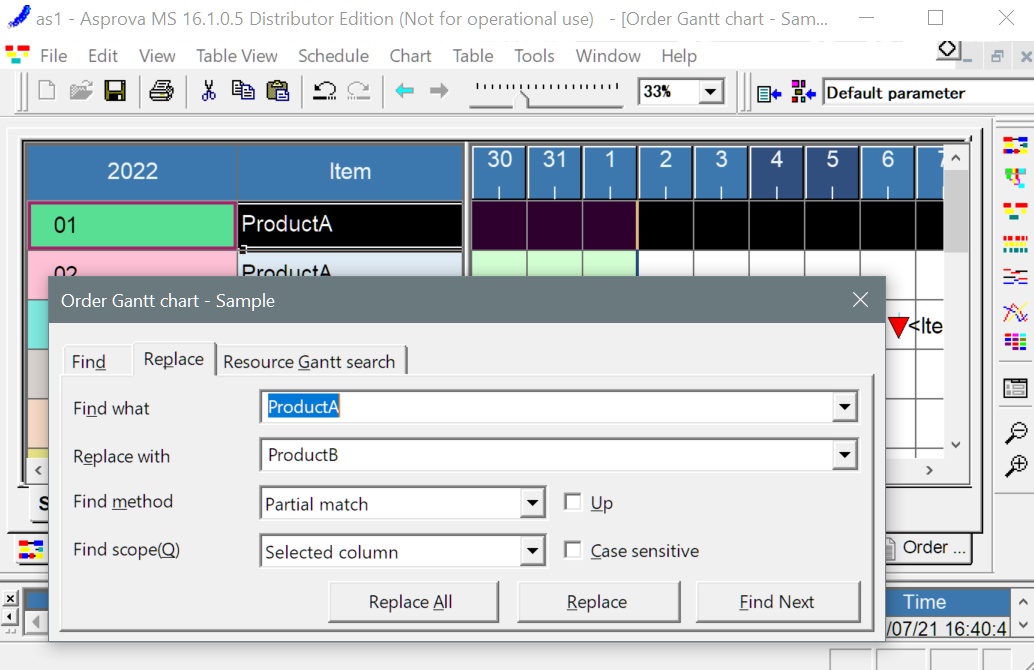

When performing the replace on a time chart, the corresponding cell in the table is what will be replaced. The cell to be replaced becomes highlighted, and at the same time, the corresponding row on the chart becomes selected.
