Calendar Dialog

Dialogs Overview


You can use calendar dialogs with time type properties or date expression type properties. Ver.13 restricted features.

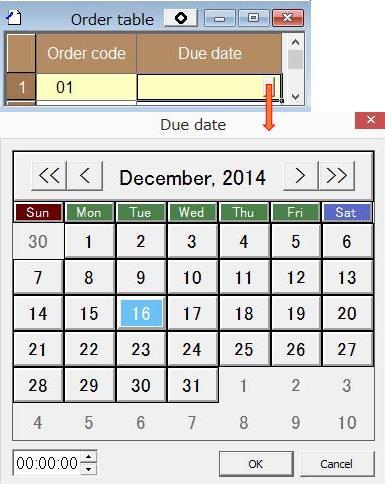

Time type calendar dialog

Clicking the button of a time type property displays the dialog.


Click a date in the dialog to select that date.

Set the time in the lower left.

Clicking OK sets the selected date and time to the property.


Click [<<] or [>>] to change the year.

Click [<] or [>] to change the month.

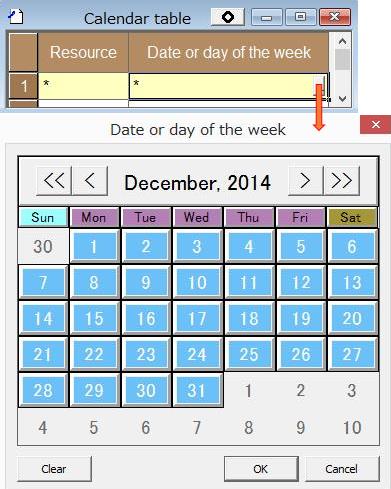

Date expression type calendar dialog

Clicking the button of a date type property displays the dialog.


Click a date or day of the week in the dialog to select it.

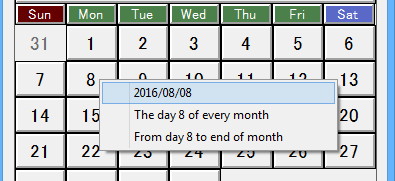

Right clicking on a date indicated by the mouse cursor will cause the following popup menu to be shown. (From Ver.13.0.0)

Indicated date

Selects the date indicated by the mouse cursor. (In the figure below, 2016/08/08)

The day x of every month

Selects the date indicated by the mouse cursor. (In the figure below, The day 8 of every month)

From day x to end of month

Selects the period from the date indicated by the mouse cursor until the end of the month. (In the figure below, From day 8 to end of month)

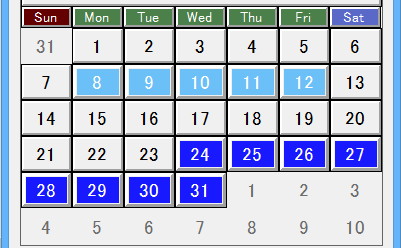

If dates or days of the week are selected, display is done in light blue.
If “The day x of every month” or “From day x to end of month” is selected and this is applied to a month, display is done in navy blue.



Clicking a selected item clears the selection.

When a day of the week is selected, clicking a date that falls under the selected day of the week selects the date and unselects the day of the week.

Clicking OK sets the value corresponding to the selected date, date range, or day of the week to the property.


Click [<<] or [>>] to change the year.

Click [<] or [>] to change the month.
