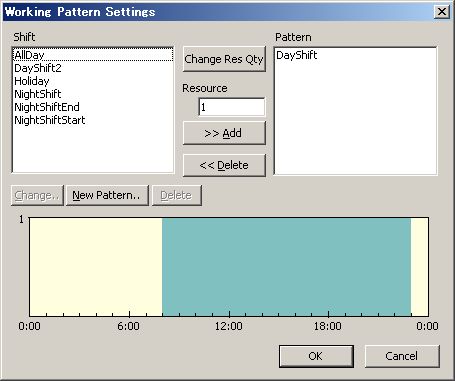

Working Pattern Settings dialog

Dialogs Overview


You can apply an existing shift to the selected cell or day of the week. You can apply multiple shifts or specify the resource quantity. You can also create a new shift.



Shift

The list box displays the shifts that are currently specified in the shift table.

Pattern

The list box displays shifts that are added as working patterns. The graph at the bottom of the dialog displays the result of the shift and resource qty contained in the pattern.

Change Res Qty

You can select a shift in the pattern list box, specify the resource qty in the resource qty text box and then click this button to change the resource qty of the selected shift.

Add

Adds to the pattern list the shift that you selected from the shift list. The added shift will no longer appear in the shift list.

Delete

Deletes the shift that you selected from the pattern list and puts it back to the shift list.

Change

Displays the Shift Pattern Settings dialog and changes the time period (pattern) of the shift that you selected from the shift list.

New Pattern

Displays the Shift Pattern Settings dialog and adds a new shift.

Delete

Deletes the shift that you selected from the shift list. The shift will be deleted from the shift table as well.

OK

Applies the selected pattern and closes the dialog.

Cancel

Does nothing and closes the dialog.

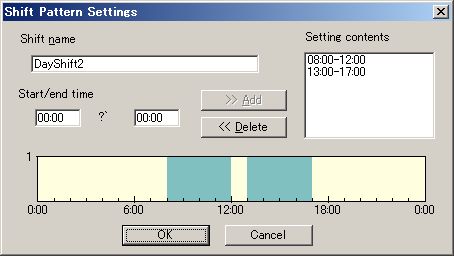

Shift Pattern Settings dialog

This dialog is displayed when you click the "Change" or "New Pattern" button above.



Shift name

If you clicked the "Change" button, the selected shift code is displayed. Remains blank in the case of "New Pattern."

Setting contents

If you clicked the "Change" button, the time period of the selected shift code is displayed. Remains blank in the case of "New Pattern."

Start/End time

Specify the start and end time of the working time.

Add

Adds the start/end time to the setting contents.

Delete

Deletes the time period that you selected from the setting contents list and enters that time to start/end time.

OK

Specifies the shift name for the set contents as a shift code in the shift table and closes the dialog.

Cancel

Discards the contents you changed and closes the dialog.


HelpNo.:728000
