Toolbars - Setting

Toolbars

Provides commands for general Asprova APS settings.

The following tool buttons are included from upper-left to upper-right.

Project Settings

Displays properties of the current project in the properties window.

Scheduling Parameter Settings

Displays properties of the currently selected scheduling parameter in the properties window.

Current Scheduling Parameter

Displays the currently selected scheduling parameter. You can select the scheduling parameter you want to apply to scheduling from the drop down list box.

Current Scheduling Parameter

Displays the currently selected scheduling parameter. You can select the scheduling parameter you want to apply to scheduling from the drop down list box.

At present, there are two Current Scheduling Parameter combo boxes.One was added from Ver.5.2.1 and displays the Scheduling parameters as a filter tree whilst the other is version previous to that.

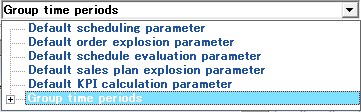

The Scheduling Parameter select box is displayed as a tree. The composite scheduling parameters are displayed with the tree closed, as shown below. (In versions earlier than Ver.12.0.3, the tree is open.)


If you click the '-' then the tree closes and if you click the '+' then the tree opens. The following image shows the expanded state.



From Ver. 15.0, you can jump to the scheduling parameter table from the right-click menu.


Filtering the Current Scheduling Parameter's List Display

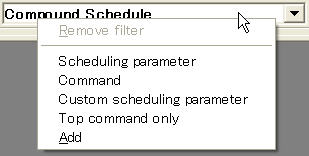

If you click the right mouse button whilst above the the Current Scheduling Parameter's select box then the filter menu is displayed, as shown below.
If you select a filter condition then the displayed contents of the combo box are filtered by that condition.


If you select "Add" from the menu then you can add filter conditions from the Filter method dialog>.

You can also set the Scheduling parameter filter settings from the Scheduling parameter list filter property in the Edit Workspace window (Settings tab).
The default is set to:
ME.Command_DisplayToComboBox=='1'

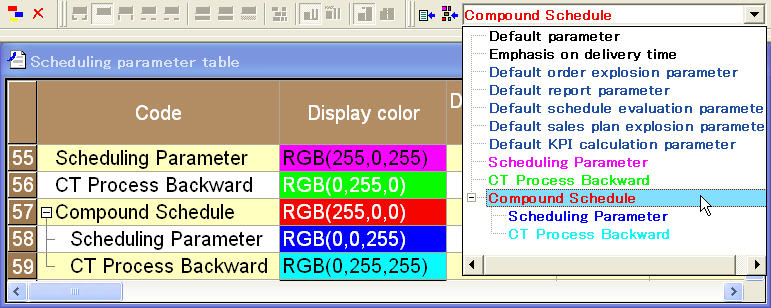

Display color of the Scheduling parameter

By setting the Display color property in the Scheduling parameter you can set the color of the Scheduling parameters displayed in the Scheduling parameter select box.
The default Scheduling parameters are set to dark blue.



Resetting the current Scheduling parameter select box

If you use a module version equal to or later than Ver.5.2.1 and then return to a module with a version before that then the Scheduling parameter select box will not be displayed.

In order to recover from this condition:1.Choose Tools/Customize from the main menu.2.While the "Customize" dialog is showing, click on the select box in the main tool bar.
On the Command tab, select Setting in the [Category] list, and drag & drop the scheduling parameter combo box on the tool bar.

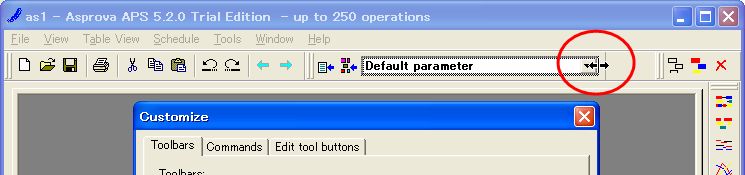

Changing the width of the scheduling parameter select box

The width of the select box can be changed by: (This operation is also possible for combo boxes in versions before and after Ver. 5.2.1.)

1. Choose Tools/Customize from the main menu.

2. From the Commands tab, select "Setting" from the Categories list.

3. Drag and drop the Scheduling parameter select box to the Tool bar.




HelpNo.:722000
