Add New Master dialog

Integrated Master Editor

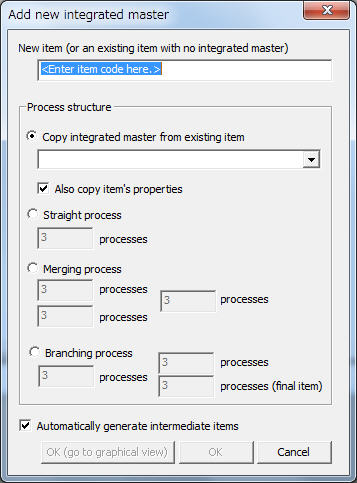

Selecting [Insert] - [Item] from the body part popup menu or the row popup menu of the Integrated Master Editor will display the Add New Master dialog as shown below.


New item

In the text box of the "New item" field, enter the item code of the new item you want to add. Codes that can be added are those that do not exist in the item table or those that do not have master data.

Process Structure

From the “Process structure” area, select the method you wish to use to create the master.

Copy integrated master from existing item

You can select properties from the drop down list box.

Also copy item’s properties

You also choose whether to copy the item’s properties.

Straight process

Creates a straight process master. In the text box specify the number of processes to be created.

Merging process

Creates a merging process master. In the text box specify the number of previous processes and next processes to be created.

Branching process

Creates a branching process master. In the text box specify the number of previous processes and next processes (by-products/final item) to be created.

Automatically generate intermediate items

If you check "Automatically generate intermediate items", intermediate items will be generated according to the auto-generated intermediate item code expression specified for the project.
If you do not check this item, intermediate item codes of the copied item will be used as they are.

If you click on the [OK] button, the new master data will be created by copying the master data of the item you selected to the item code you specified.

If you select the "Automatically generate intermediate items” check box, intermediate items will be generated according to the auto-generated intermediate item code expression specified for the project.

If you click on the Cancel button, the dialog will close without doing anything.
