XML import and export (class definitions, property definitions)

XML import and export


Import/export GUI settings with XML text file. ( Ver.13 restricted features. )


XML import

Imports property definitions and class definitions of XML format text files.
During import, if there are objects with the same internal property and class names, the writable property is overwritten by the value in the external XML file.

Read-only properties cannot be imported. When trying to import, they will be ignored.


XML export

Exports property definitions and class definitions to an XML format text file.
There are several ways to export.


Export

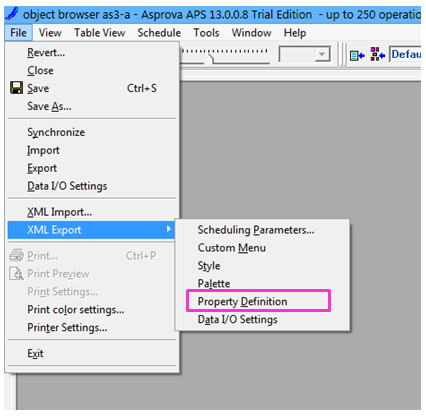

File menu

Selecting “File/XML Export/Property Definition” from the menu causes the property definitions of user defined properties to be exported in XML format.

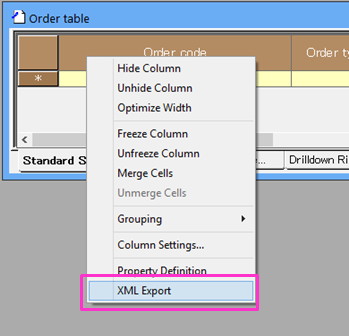

Table header popup menu

Selecting “Export XML” from the popup menu displayed by right-clicking a table header causes its property definition to be exported in XML format.

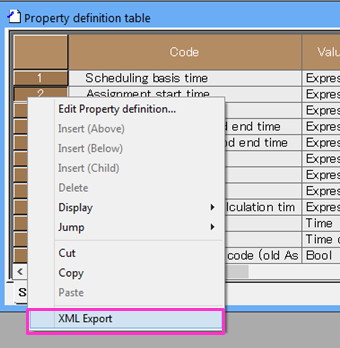

Property definition table row popup menu

Selecting “Export XML” from the popup menu displayed by right-clicking the row number part of a property definition table causes its property definition to be exported in XML format.

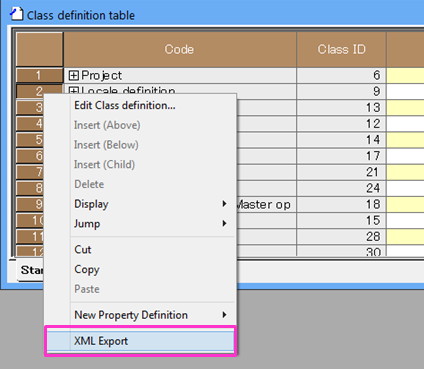

Class definition table row popup menu

Selecting “Export XML” from the popup menu displayed by right-clicking the row number part of a class definition table causes its class definition to be exported in XML format.



HelpNo.:709020
