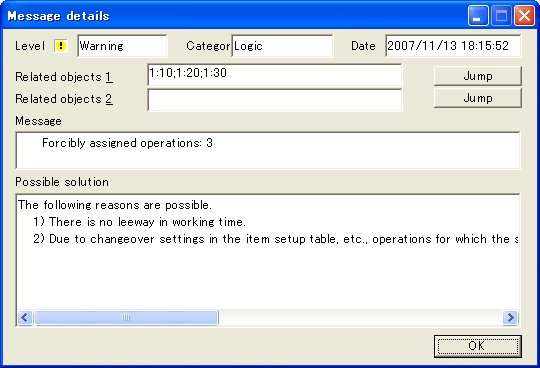

Message detail dialog


When you double click the message of either "error" or "warning" on either on the message table or message window, this dialog will be displayed.

This dialog is a modeless dialog, as this is different form other dialogs. Accordingly, you can operate Asprova table or chart while keeping the dialog on display. In addition, Asprova is made in such a way that you can operate the countermeasure for reference or verify the table after jumping on the related object.

Furthermore, if you grab the edge of the dialog with the mouse you can change the size of the dialog.


Level

This displays the message level.


Category

This displays the message category.


Time

This displays the time, which displays the message.


Related object 1

This is the message related object. In case of empty, it means that there is no related object. When you press the jump button, it will display the table for its related object.


Related object 2

This is the message related object. In case of empty, it means that there is no related object. When you press the jump button, it will display the table for its related object.


Message

This displays the message.


Possible solution

You can refer to these countermeasures and improve the conditions for error or warning.
In addition, when there is the help number available on the message, please refer to the help page as referred to in the help number.




HelpNo.:706260
