Pegged Order Gantt chart

Order Gantt Chart

Main Window

GUI Overview

Menu Bar - Window

Table Time Chart Windows Overview

The pegged order gantt chart presents an easy way to view a group of connected orders, from the viewpoint of one of those orders.

- total lead time of the whole group of orders
- pegging connections between orders

This form of viewing makes it easy to see:



Characteristics and usage

The pegged order gantt is used basically in the same way as the order gantt chart, with a few differences.

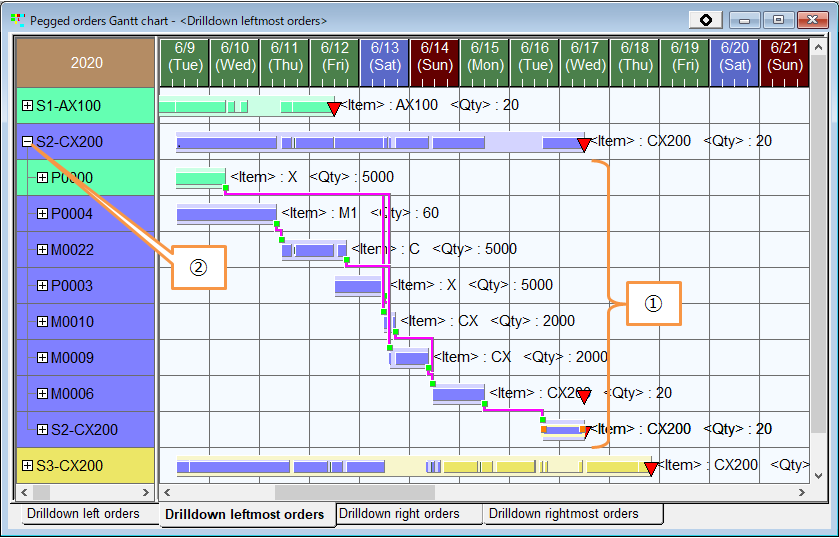

1Expanded orders are shown below the main bar.
2Clicking + expands the pegged orders.
Clicking - contracts it.

The main bar of the pegged orders shows only orders which are currently in an assigned state.

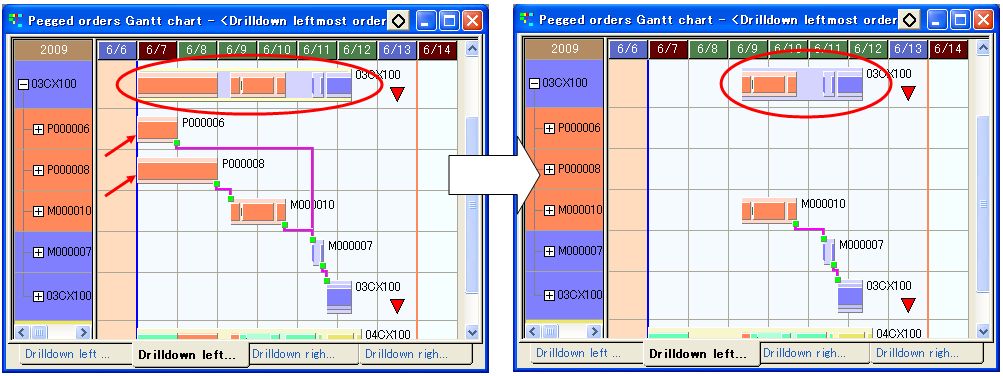

For example in the image below, if the orders P000006 and P000008 are unassigned, the main bar of the pegged orders will exclude those from the grouped display.



Left part text expression

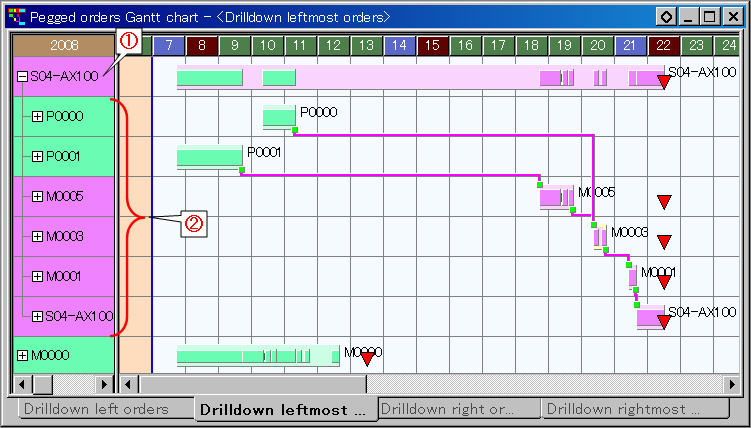

In pegged order gantt chart, orders and related orders are shown on the left side by default.
With following left part text expression properties found from chart display settings (table tab), the contents of the information shown on left can be customized.

  PropertyDescription
 1Order left part text expressionSpecify the contents to be displayed in the first column of order rows.
<Example> Order code + order quantity + due date
ME+', '+';Qty='+ME.Qty+', '+';Due date='+ME.LET
 2Pegged order left part text expressionSpecify the contents to be displayed in the first column of order rows.
<Example> Order code + order quantity + due date
ME+', '+';Qty='+ME.Qty+', '+';Due date='+ME.LET


The part that can be displayed by drilling down below the order rows is the same as the left part of the order Gantt Chart.


Left part color expression (Ver.8 restricted feature)

We can set the left part color by the properties in the table tab of the chart display settings.
From Ver.7.3.1, the color of orders and pegging items would not be fixed any longer.

  PropertyDescription

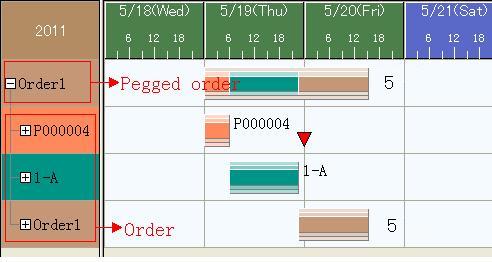

 1Pegged order left part color expressionTo set the background color of the row of pegged order.
<Example> The month of due date
GetMonthPart(Order_LET)
 2Order left part color expressionSet the background color for order row on left part.
<Example> The month of due date
GetMonthPart(Order_LET)




The drilled down rows under the main bar correspond with the left side of normal order Gantt chart.


Styles of the pegged order gantt chart

The pegged order gantt chart has 4 styles prepared by default.

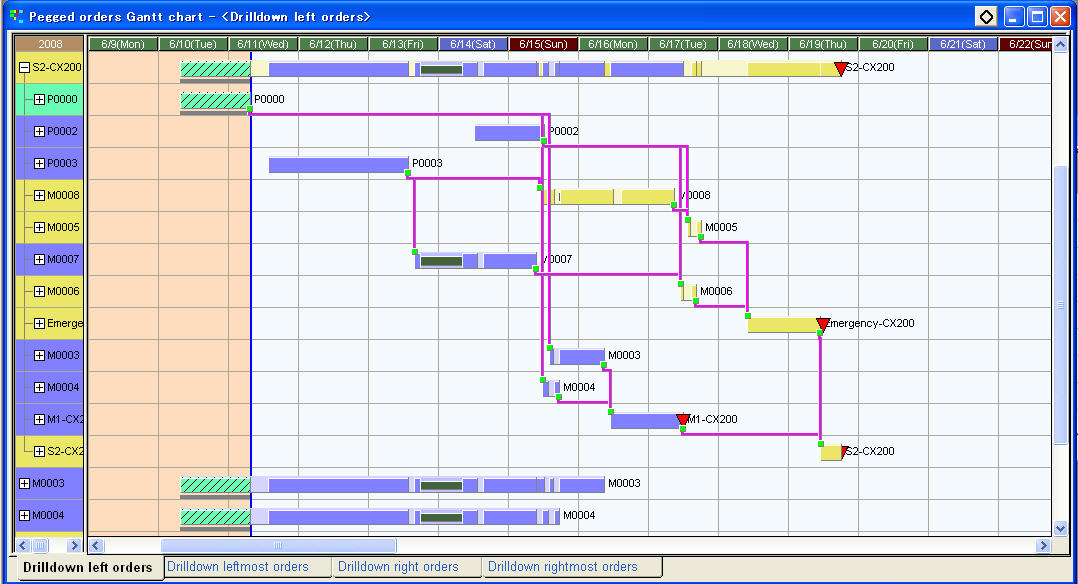

Drilldown Left Orders

The group of orders be made up of all child orders (orders on the left), going recursively back to include all connected child orders.
Only orders which actually have any child orders will be included in the vertical axis of the chart.


Drilldown Leftmost Orders

The group of orders be made up of all child orders (orders on the left), going recursively back to include all connected child orders.
Only orders which actually have children, and are NOT the child of any other orders will be included in the vertical axis of the chart.

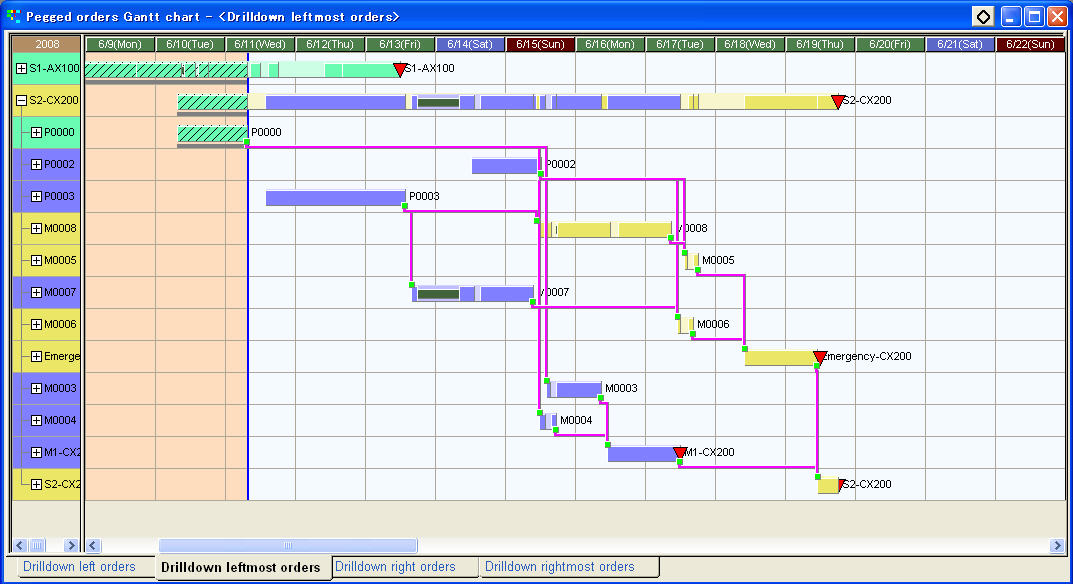

Initially this style is used as the default style.

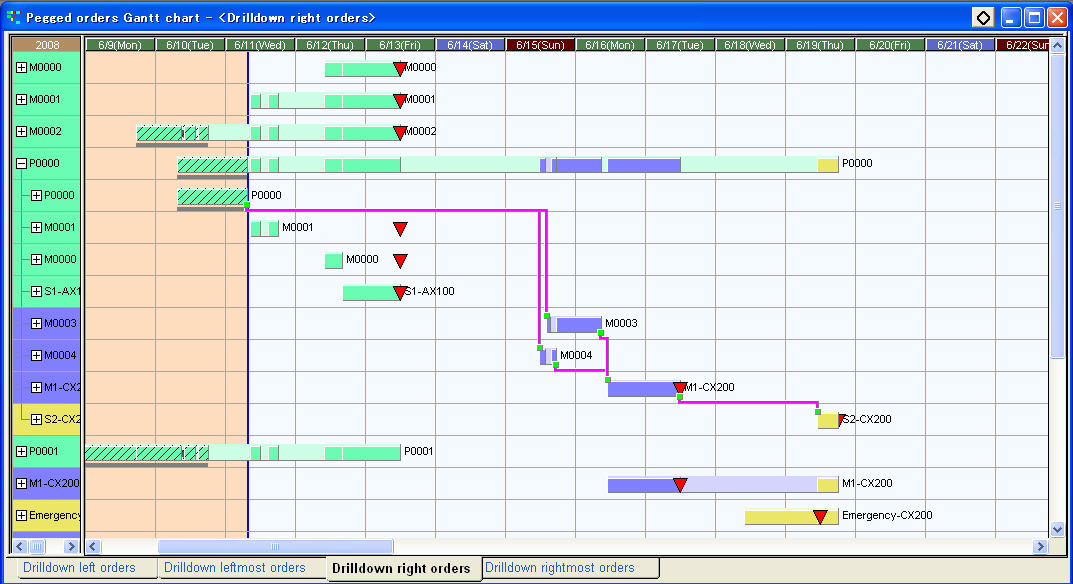

Drilldown Right Orders

The group of orders be made up of all parent orders (orders on the right), going recursively forward to include all connected parent orders.
Only orders which actually have a parent order will be included in the vertical axis of the chart.

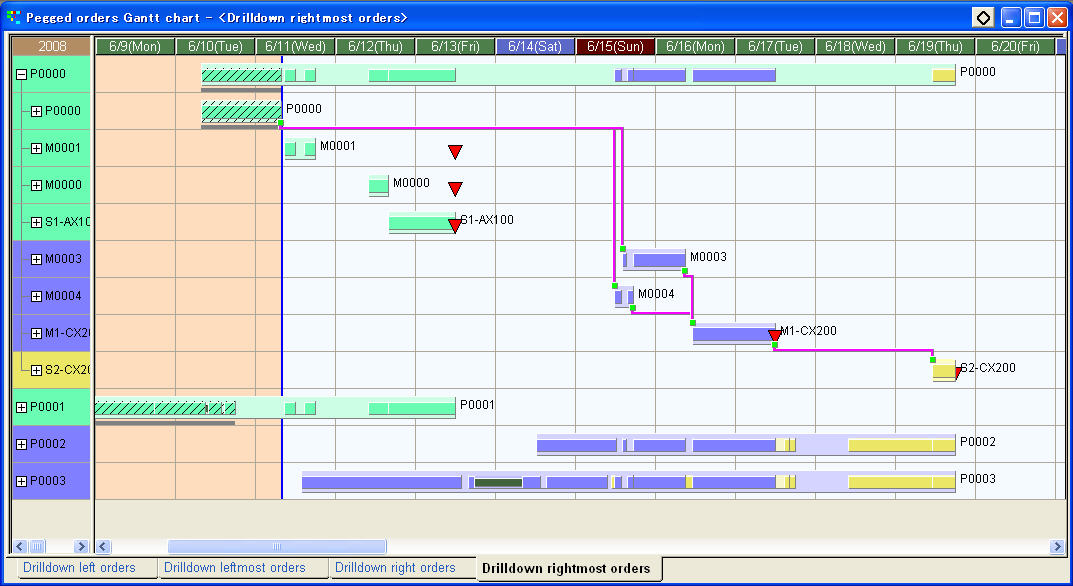

Drilldown Rightmost Orders

The group of orders be made up of all parent orders (orders on the right), going recursively forward to include all connected parent orders.
Only orders which actually have a parent, and are NOT the parent of any other orders will be included in the vertical axis of the chart.


Open charts through jumping

Whether or not to emphasize the unit term and object selected before the jump when opening a chart from the jump menu (which is a popup menu), can be set in the “Unit term after jump” and “Bar display color after jump” display properties.
