Overview

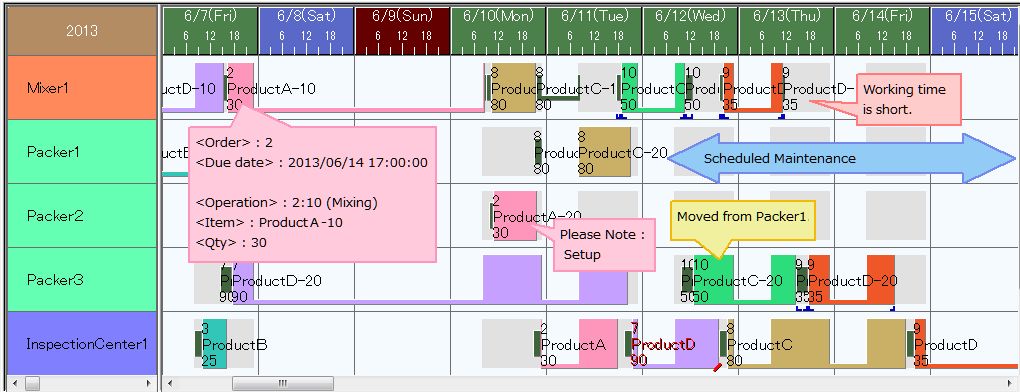

Labels can be attached to time periods and bars on a time chart. They can be shown on the chart and printed.

Label operation and importing and exporting of label tables are possible on all module types.
Asprova DS can be used to exchange label data between Asprova systems.



Type

The following types of labels are available.

Bubble

Bubbles can be attached to order, operation, and use-instruction bars as well as any time period of your choice on the body part of the chart.
Bubbles are useful in pointing to a particular time or bar.

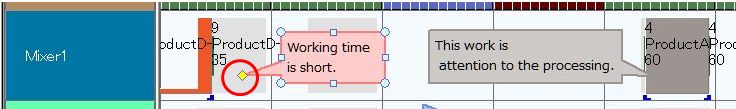

The yellow trapezoidal end point (indicated with a red circle in the following figure) extending from the bubble label is the base point.
A label is attached by aligning the base point to an order, operation, or use-instruction bar. The bar that the base point is pointing to is the label target (label owner).



Arrow

Arrows can be attached to any time period of your choice on the body part of the chart.
Arrows are useful in indicating a particular time period.

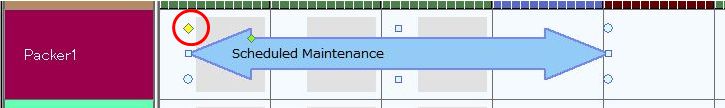

The yellow trapezoidal end point (indicated with a red circle in the following figure) at the upper left of the arrow label is the base point.
A label is attached by arranging the base point on the body part of the chart. The row that the base point is pointing to on the body part of the chart is the label target (label owner). For example, the label target (label owner) is a resource on a resource Gantt chart and an item on a inventory graph.



Label color

Background color / Border color

Labels with the following background and border colors are available as standard.

 YellowA yellow label.
 RedA red label.
 BlueA blue label.
 GreenA green label.
 Same colorThe background color and border color are set according to the label target (label owner).

The standard color is set as follows according to the label target (label owner).

Resource

Resource left part color expression property of the chart display settings

Item

Item left part color expression property of the chart display settings

Order

The bar color when the bar color method in the chart display settings is set to [Order] or [Final item]. Otherwise, the order left part color expression property of the chart display settings.

Order (body part of the chart)

Order left part color expression property of the chart display settings

Operation

Bar color of the chart display settings

Operation (body part of the chart)

Operation left part color expression property of the chart display settings

Use instruction

Bar color of the chart display settings

Overwrite Calendar


In addition, the color can be changed freely by setting the cell color expression property and border color expression property.


Font and Text color

The label text font can be specified by setting the font property in the label properties.
Also, the text color can be specified with the text color expression property.



Label content

The content to show in the label can be selected from the label's displayed content expression property.
However, if the label target (label owner) is a resource or item, only Individual will be available.

Individual

The text set in the label string property of the label object is displayed.

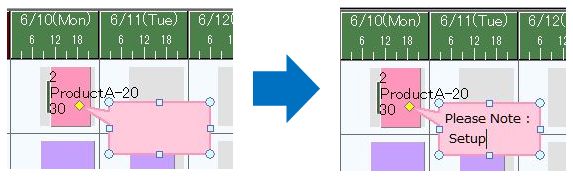

You can enter the label string by selecting a label on the chart.
Press Enter to insert a line feed in the text.
You cannot edit the text if several labels are selected, so make sure to select only the label you want to edit.

Object's comment

Shows the content of the comment (common).
If a label is attached to an operation bar or use-instruction bar, the comment (common) for the operation is shown. If it is attached to an order bar, the comment for the order (common) is shown.
When you edit a label text, it is reflected to the value of the corresponding comment (common).

Data tip text

Shows text according to the data tip text expression of the display settings.

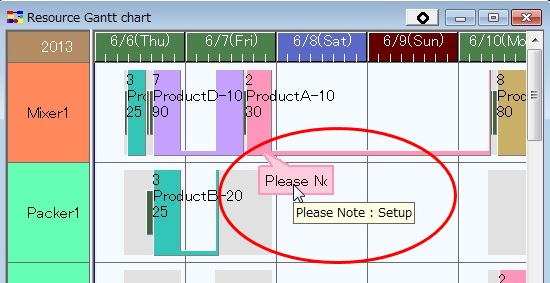

If not all the text can be displayed within the displayed label size, you can check the content by holding the mouse above the label to show the text in a data tip. ( After Ver.12.0.1 )




Label operation

For details on operations such as attaching, deleting, and moving labels, see here.



Label display

For details on filtering labels, see here.



Print

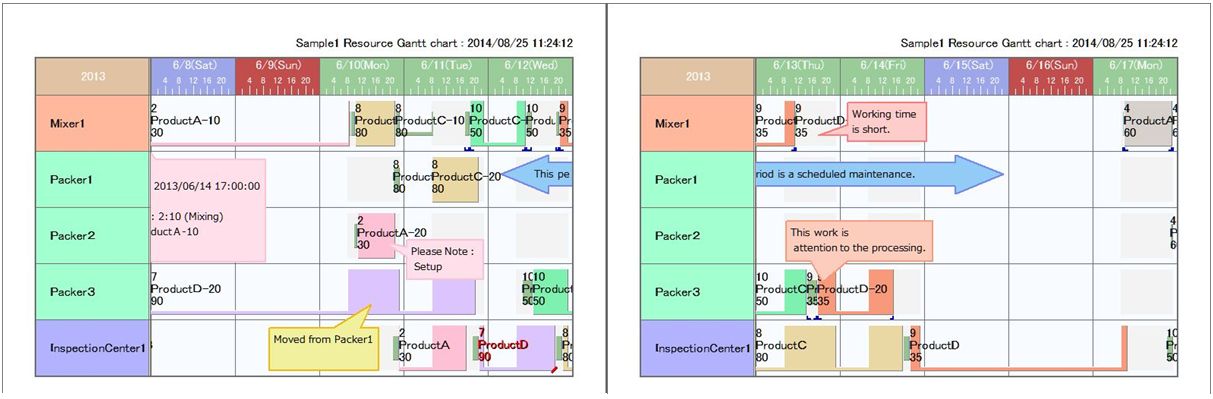

When you print a chart, the displayed labels are also printed.

If the label spans over several pages, it is printed as it appears on the screen.



Data I/O

Label data is saved to a label table.
If you change the data on the label table, the change will be reflected to the corresponding label.

In addition, label data can be imported and exported.
If you are using Asprova DS, label data can be uploaded and downloaded to exchange the data between Asprova systems.
