Table Time Chart Basic Operations

Table time chart window outline

Menu Bar - Window

Selecting and Moving a Bar


Table Time Chart Basic Operations

Cell operations

You can change the size of cells vertically or horizontally or select a cell area on the time chart using the mouse.

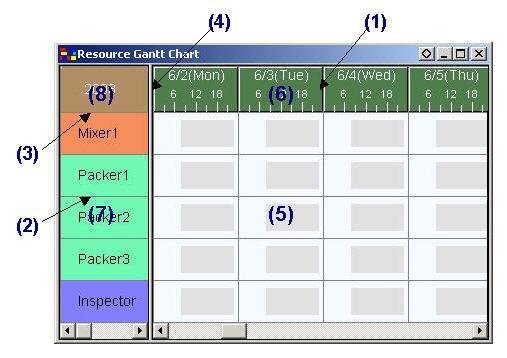

Dragging (1) horizontally changes the width of cells in the date axis.

Dragging (2) vertically changes the height of rows. Details on changing row heights can be found here.

Dragging (3) vertically changes the height of the top part.

Dragging (4) horizontally changes the width of the left part.


Selecting cells

Clicking on (5) (body part cell) with holding down the Shift key selects the cell, and dragging the mouse with holding down the Shift key expands the selected area. Doing the same with holding down both Shift and Ctrl keys selects another area in addition to the previously selected area.
Clicking on the body part of the time chart or a cell of the table view unselects the selection.

Clicking on (6) (top part cell) with holding down the Shift key selects the body part cells in that column, and dragging the mouse with holding down the Shift key expands the range of selected columns. Doing the same with holding down both the Shift and Ctrl keys selects other columns in addition to the previously selected columns. Clicking on the body part of the time chart or a cell of the table view unselects the selection.

Clicking on (7) (left part cell) with holding down the Shift key selects the body part cells in that row, and dragging the mouse with holding down the Shift key expands the range of selected rows. Doing the same with holding down both the Shift and Ctrl keys selects other rows in addition to the previously selected rows. Clicking on the body part of the time chart or a cell of the table view unselects the selection.

Clicking on (8) (corner part cell) selects all the cells. Clicking again on the corner part unselects all the cells.


Splitter view

Selecting [Window] - [Split] from the menu enables you to split the time chart horizontally.
Dragging the boundary between the split windows changes the split size of the windows.
Each split window scrolls vertically and horizontally.
Moving an Operation is possible between the split windows using the mouse.


Scrolling outside the time period (After Ver.12.0.2, Ver.13 restricted feature)

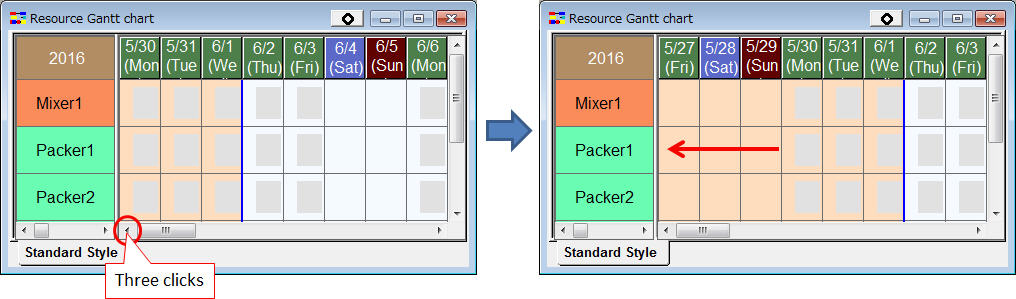

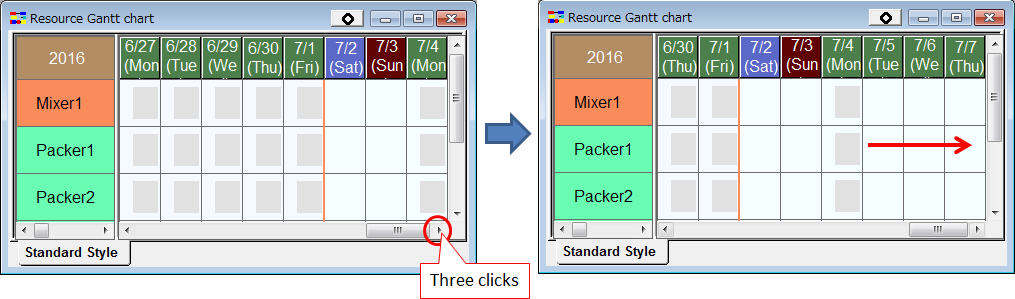

After scrolling horizontally to the right edge or left edge of the display time period, clicking the scroll bar button allows you to scroll further by expanding the display time period.

The time period expanded by scrolling only applies to the display start time and display end time of the chart and does not affect the time period setting in the project settings.



Zoom

There are various ways to zoom the table time charts.
See here for more details.


Display settings

For each table time chart, you can set a display method and display contents in detail using the display settings feature. Clicking on the [Display Settings] button on the toolbar displays properties for the Display Settings.


Styles

You can save the contents of the display settings in Styles. The styles you saved can be called and used.


Table View

A table view that is shown on the left side of a table time chart can be operated in the same way as an usual Table View.


Linking charts

This links the time axis setting and horizontal scroll for several time charts. Please refer Click here.
