Table Time Chart Windows Overview

GUI Overview

Main Window


A table time chart is a chart in which the window is vertically divided into two parts, a table view on the left side and a time chart of which the horizontal axis represents time on the right side.
You can change the display range of a table view and a time chart by placing the mouse cursor on the boundary between the table and chart and dragging the mouse to the right or left.


Generally, table time charts include the following types of charts:




A table time chart can be divided into the following parts:

Time Chart

Body part

(1) is referred to as the "body part". Each rectangular area where a date column and table view row cross is called a cell in which main information is displayed. Using information displayed in each table view row, you can display various other information or perform various operations.
By using the up/down and left/right scroll bars you can scroll the main area of the time chart. In addition, you can also scroll by using the up, down, left, right arrow keys. (For the Resource gantt chart, Order gantt chart and Operation gantt chart, this is in the case that you have not selected a bar)

If dragging by pressing mouse's middle button, you can up/down/left/right scroll the chart. (After Ver.12.0.2, Ver.13 restricted feature)

Top part

(2) is referred to as the "top part". The top part displays time.
When the mouse is held over the date part of the header, a tooltip displaying the month and day will be shown, which is handy when the columns are made very narrow. (This was added from Ver.6.1.2)



The day of the week of the header can be set in the "Days of week format" property on the "Locale" tab of workspace settings dialog (Menu [View/Workspace Settings]).



Table View

Body part

(3) is referred to as the "body part". Each rectangular area where a column and row cross is called a cell in which the values for each property are displayed.
You can scroll the main area of the table display and display each property. The up/down scroll is linked to the up/down scroll of the main area of the time chart.

Top part

(4) is referred to as the "top part". The top part displays properties of the table.

Left part

(5) is referred to as the "left part". The left part is the leftmost columns of the table view rows, scrolling only vertically. Using the information displayed in each row, you can display various other information.

Corner part

(6) is referred to as the "corner part". Usually, the corner part shows the year of the dates of the time chart.

Style tab

(7) is referred to as the "style tab". It displayed the registered styles, which when clicked display the corresponding style.



A time chart shows time on the horizontal axis, supporting various related operations and display settings.

The corner part of the window displays the year of the dates shown on the horizontal axis. The top part of the window displays the time scale.


Displaying day demarcation lines and periods

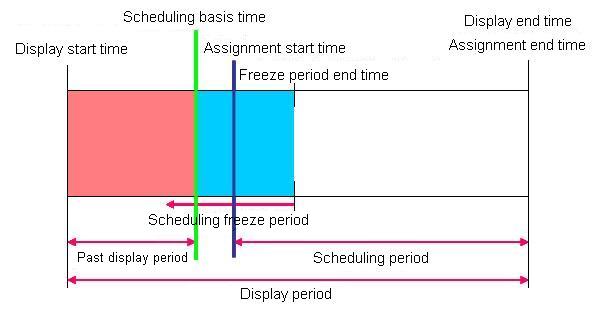

On a time chart, various day demarcation lines are displayed as shown in the figure.
Each demarcation line/period has the following meaning:

(7) Scheduling Basis Time

(8) Assignment start time

(9) Assignment end time

(10) Freeze period end time

(11) Display start time

(12) Display end time

(13) Day Demarcation Time


Unit term

The time axis of the time chart is displayed in 1-day units by default. You can change the unit term to hour, week, or month.


Display period

Re-display the time chart in the specified period.


Start day of week, Start day of month ( Ver.13 restricted features. )

If week is selected as the unit term of the time axis of the time chart, you can set the start day of the week in the “Start day of the week” property. By default, "Mon" is set, and weeks are displayed with Monday as the start day of the week.

If month is selected as the unit term of the time axis of the time chart, you can set the start day of the month in the “Start day of the month” property. By default, the 1st is set, and months are displayed with the 1st as the start day of the month.


Dragging and dropping of date lines

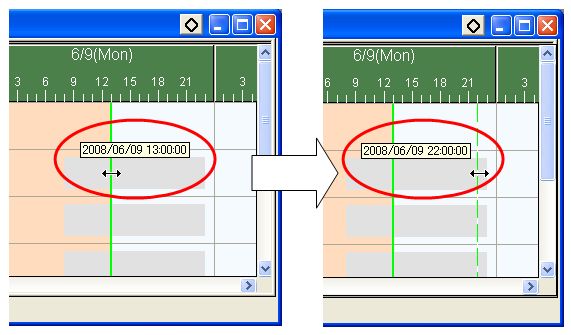

When the mouse is placed over the date lines on a time chart, the cursor will change to that shown below, and the date line can be moved by dragging it with the mouse. (Feature introduced from Ver.6.3.0)

The date lines which can be moved are
- scheduling basis time
- scheduling period start time
- scheduling period end time
Date lines can only be moved if they are specified as an absolute date (eg. specified inside hash marks like #2009/01/01 00:00:00#).
When the mouse is held over a date line which is specified as a relative date (eg. PROJECT.BasisTime+1d) the cursor will not change and the line cannot be moved.

When moving date lines, the movement will be in steps of one hour, from the original position. If the Ctrl key is held down while moving, the movement will be in steps of one minute.
If the Ctrl key is held down while moving, the movement will be in steps of one minute.


Often the scheduling basis time and the scheduling period start time are the same date, so the lines are overlapping on the chart. In this case the default behavior is to select the basis time for moving with the mouse. If you want to move the scheduling period start time line instead, holding the Ctrl key when selecting the line will cause the scheduling period start time to be selected.

Dropping the time will display a confirmation dialog. (after Ver.12.0.2)
Clicking the OK button will move the time.
Clicking the Cancel button will not move the time.
