Main window

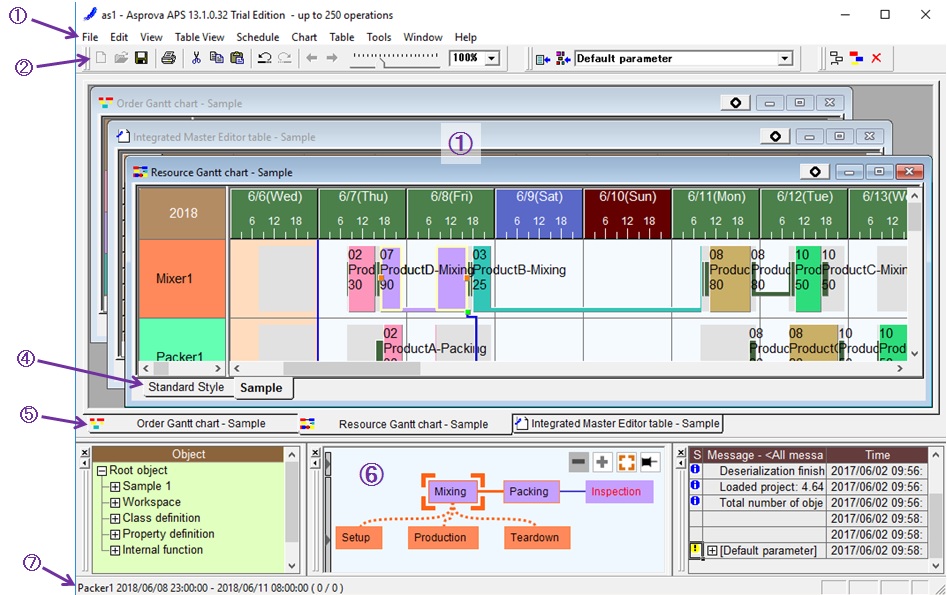

Asprova APS's main window is composed of the following components:

(1)Menu Bar

The menu bar is used in executing various Asprova APS functions. The menu items available for execution will vary depending on the type of window in the foreground (3).

(2)Toolbars

Allows execution of Asprova APS commands with a single button click. You can specify the tool buttons you want to display on the toolbars from [Tool] - [Customize] in the menu.

(3) Windows

Various windows are available for displaying scheduling results, master data, orders and so on.

Table Time Chart Windows

Table View Windows

HTML View

Among the windows currently being displayed, the one in the foreground is called an active window.

(4) Style tab

The tab of the currently set style is displayed. Click the tab to change the style.
The tabs can be shown/hidden by selecting “View/ Show style tabs” from the menu.

Right clicking on a tab will display the following popup menu. ( After Ver.13.1.0 )

Move leftmost

Moves the tab to the leftmost position.

Move left

Moves the tab one position to the left.

Move right

Moves the tab one position to the right.

Move rightmost

Moves the tab to the rightmost position.

Style Settings

Opens the Style settings property window.

Unhide

Displays the hidden style tab.

Hide

Hides the style tab.

The position of the tab can be changed by moving the tab with the mouse. ( After Ver.13.1.0 )

(5) Workbook

Tabs are displayed as many as the number of windows currently being opened. Click on a tab to bring a different window into the foreground.
Tabs can be can be hidden/shown by selecting “View/Show As Workbook” from the menu.

If right click on the tab, the following popup menu will be shown.

Show in outer window

Show in outer window.

Restore

Restore the window size.

Maximize

Maximize the window size.

Minimize

Minimize the window size.

Move leftmost

Moves the tab to the leftmost position. ( After Ver.13.1.0 )

Move left

Moves the tab one position to the left. ( After Ver.13.1.0 )

Move right

Moves the tab one position to the right. ( After Ver.13.1.0 )

Move rightmost

Moves the tab to the rightmost position. ( After Ver.13.1.0 )

Close

Close the window.

Middle click the tab will close the window.(After Ver.11.0.2, Ver.12 restricted feature)

Whether to show window's tab can be chosen by menu [View] - [Show As Workbook].

(5)Global Windows

Object Window

Properties window

Message Window

Object Browser

(7) Status Bar

This displays the message. Displays various messages while each process is running, or displays messages describing the object at the current location of the mouse cursor.


HelpNo.:657000
