Let's Start Asprova APS


To set a sub resource, you need to specify the instruction code as Sn (n is a 0 or larger integer) or an arbitrary sub resource code (that you can define using the use instruction master). Also, as explained below, you can express various types of sub resources by using the following patterns of setting values for setup / production / teardown properties.

(1) Ordinary sub resource

(Main resource settings)
SetupProductionTeardown
OptionalMandatoryOptional

(Sub resource settings)
SetupProductionTeardown
Optional (If you specify any value including 0, the setup will be assigned to the sub resource as well as the main resource.)Specify some value (If you want the production to match the production time of the main resource, you can specify the value as 0.) Optional (If you specify any value including 0, the teardown will be assigned to the sub resource as well as the main resource.)

For the production time calculation method, you can select one from "Main resource", "Longest time resource", and "Longest time sub resource" in the scheduling parameter settings (default value is "Main resource"). If setup times are specified for the main resource and the sub resource, the longest setup time is used.


(2) Internal setup sub resource (for setup, teardown, or both)

(Main resource settings)
SetupProductionTeardown
Some value (zero is allowed).MandatorySome value (zero is allowed).

(Sub resource settings)
SetupProductionTeardown
Some value (zero is allowed).BlankSome value (zero is allowed).

If setup times are specified for both the main resource and the sub resource, the longest setup time is used.

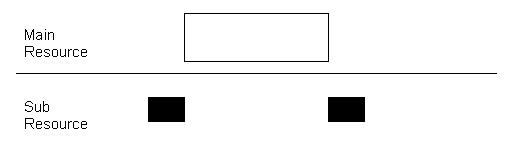

(3) External setup resource (for setup, teardown, or both)

(Main resource settings)
SetupProductionTeardown
BlankMandatoryBlank

(Sub resource settings)
SetupProductionTeardown
Some valueBlankSome value
